2 Level
(4 tray sizes available)
EVA / SGP Glass Laminating Machines

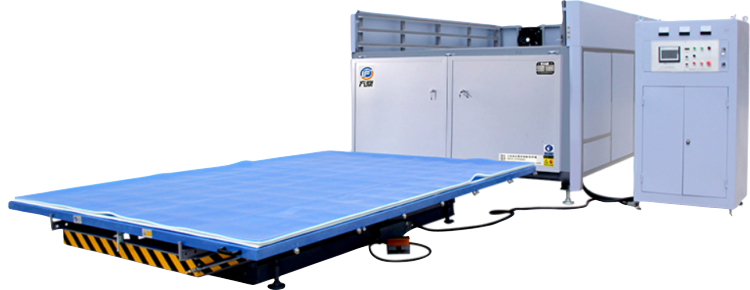

3 Level
(4 tray sizes available)
Model J-X-3 Features
•
3 Trays with automatic lifting table that saves space,
labour and increases capacity.
•
Fan in top storage section helps dissipate heat after cycle
is finished, this resulting in quicker turnover.
•
Capable of architectural laminated glass, bent laminated
glass, bulletproof laminated glass, low-E laminated glass,
one way transparent laminated glass, conducting
laminated glass, switch-able laminated glass, dry flower
laminated glass, artistic laminated glass sandwiched
silk/photo/paper as well.
•
It comes with a special 3mm thick high tear-resistant
silicone bag, which improves service life, sealing and yield
versus traditional silicone bags.
•
German heating technology for even heating
•
Italian designed vacuum pump ensures vacuum even if
power suddenly is interrupted.
Model J-X-3 Main Technical Parameters
Electric Power
3 phase, AC 220-440V (or as specified by
customer)
Max. Glass Size
•
118” x 78” - 3 x 2m (up to 580 sq.ft/cycle, Floor space
146”x 29.53’, Weight 7720 lbs, 36 KW)
•
126” x 86” - 3.2 x 2.2m (up to 678 sq.ft/cycle, Floor space
158” x 31.2’, Weight 8160 lbs, 40 KW)
•
144” x 86” - 3.66 x 2.2m (up to 775 sq.ft/cycle, Floor
space 158” x 34.5’, Weight 8380 lbs, 46 KW)
•
144” x 96” - 3.66 x 2.44m (up to 860 sq.ft/cycle, Floor
space 177” x 34.5’ , Weight 9040 lbs, 52 KW)
Max thickness
40mm
Efficiency
75-120 min / cycle
Trays
3
Heat Chambers
1
Temperature
90 - 140 degree C (194 to 284 degree
Fahrenheit)
4 Level
(4 tray sizes available)

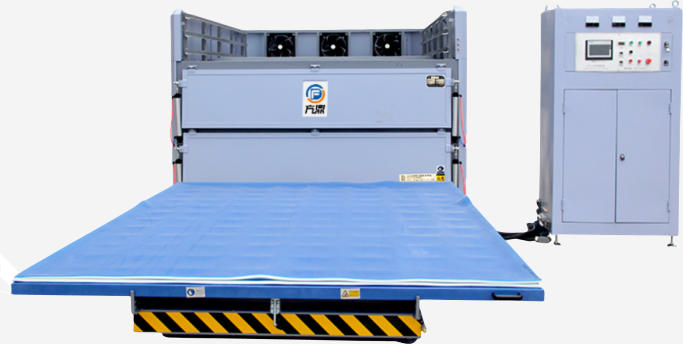

Model J-X-4 Features
•
2 Independent heating chambers allow laminating of
different products at the same time.
•
4 Trays with automatic lifting table that saves space,
labour and increases capacity.
•
Fan in top storage section helps dissipate heat after
cycle is finished, this resulting in quicker turnover.
•
Capable of architectural laminated glass, bent
laminated glass, bulletproof laminated glass, low-E
laminated glass, one way transparent laminated glass,
conducting laminated glass, switch-able laminated
glass, dry flower laminated glass, artistic laminated
glass sandwiched silk/photo/paper as well.
•
It comes with a special 3mm thick high tear-resistant
silicone bag, which improves service life, sealing and
yield versus traditional silicone bags.
•
German heating technology for even heating
•
Italian designed vacuum pump ensures vacuum even if
power suddenly is interrupted.
Model J-X-4 Main Technical Parameters
Electric Power
3 phase, AC 220-440V (or as specified by
customer)
Max. Glass Size
•
118” x 78” - 3 x 2m (up to 775 sq.ft/cycle, Floor space
146”x 29.53’, Weight 8160 lbs, 38 KW)
•
126” x 86” - 3.2 x 2.2m (up to 904 sq.ft/cycle, Floor
space 158” x 31.2’, Weight 8600 lbs, 45 KW)
•
144” x 86” - 3.66 x 2.2m (up to 1033 sq.ft/cycle, Floor
space 158” x 34.5’, Weight 9040 lbs, 52 KW)
•
144” x 96” - 3.66 x 2.44m (up to 1151 sq.ft/cycle, Floor
space 177” x 34.5’ , Weight 9480 lbs, 58 KW)
Max thickness
40mm
Efficiency
75-150 min / cycle
Trays
4
Heat Chambers
2 (independent)
Temperature
90 - 150 degree C
Our most popular model with Double Independent Heating Chambers

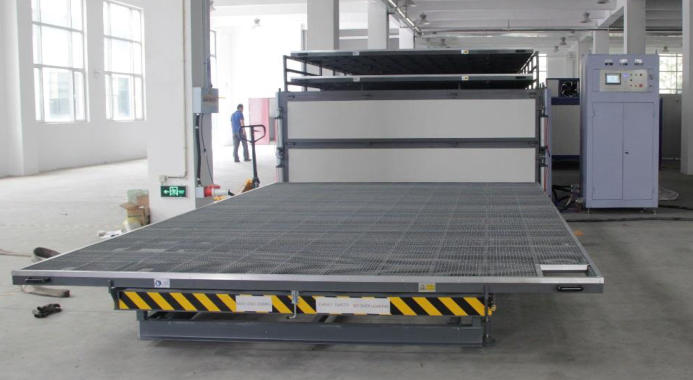

Front View of Actual Installation

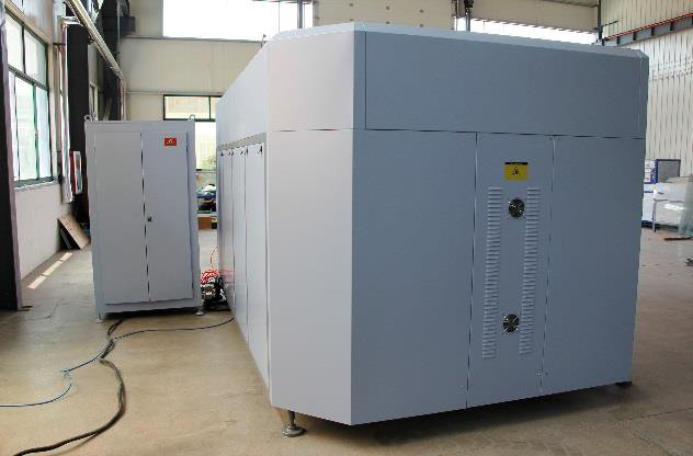

Rear View of Actual Installation

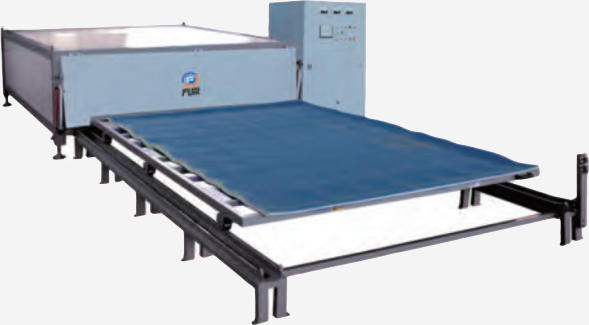

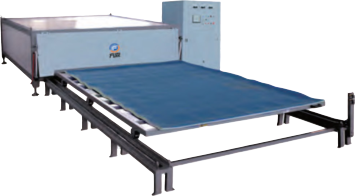

Model J-X-2 Features
•
2 Trays with special designed double track that can be
used as single or double work station.
•
It comes with a special 3mm thick high tear-resistant
silicone bag, which improves service life, sealing and
yield versus traditional silicone bags.
•
German heating technology for even heating, that is
highly efficient. Energy consumption is 40-50% of
similar machines and has longer service life.
•
Turbo Blower cycle auxiliary heating to avoid blind
angle in the furnace thus increasing yields.
•
Italian designed vacuum pump ensures vacuum even if
power suddenly is interrupted.
Model J-X-3 Main Technical Parameters
Electric Power
3 phase, AC 220-440V (or as specified by
customer)
Max. Glass Size
•
118” x 78” - 3 x 2m (up to 580 sq.ft/cycle, Floor space
146”x 29.53’, Weight 7720 lbs, 36 KW)
•
126” x 86” - 3.2 x 2.2m (up to 678 sq.ft/cycle, Floor
space 158” x 31.2’, Weight 8160 lbs, 40 KW)
•
144” x 86” - 3.66 x 2.2m (up to 775 sq.ft/cycle, Floor
space 158” x 34.5’, Weight 8380 lbs, 46 KW)
•
144” x 96” - 3.66 x 2.44m (up to 860 sq.ft/cycle, Floor
space 177” x 34.5’ , Weight 9040 lbs, 52 KW)
Max thickness
40mm
Efficiency
75-150 min / cycle
Trays
3
Heat Chambers
1
Temperature
90 - 150 degree C
